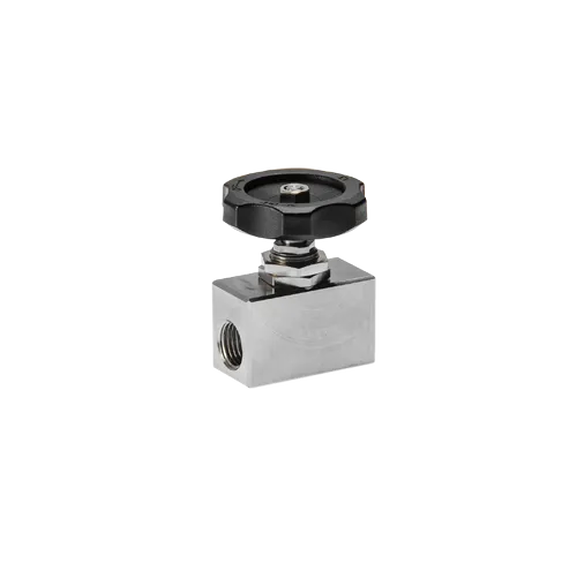

5300-8 Needle valve stainless steel
Specifications

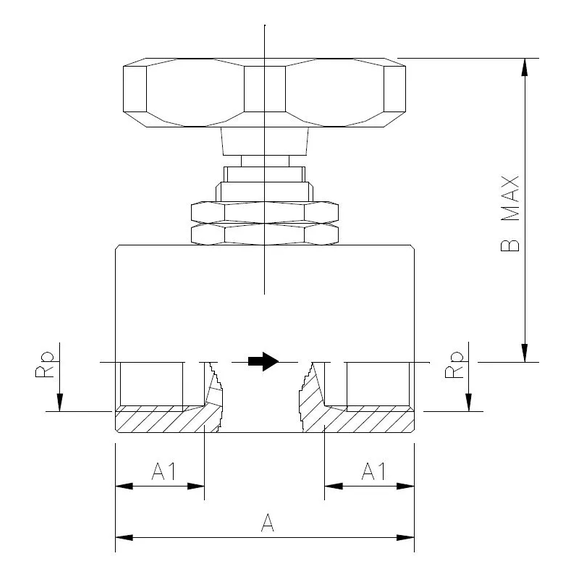

| Item number: | Thread Rp | Thread Rp | A | A1 | B max |
|---|---|---|---|---|---|
| 5300-8 1/8x1/8 | 1/8 | 1/8 | 40,0 | 8,0 | 45 |
| 5300-8 1/4x1/4 | 1/4 | 1/4 | 40,0 | 12,0 | 44 |
| 5300-8 3/8x3/8 | 3/8 | 3/8 | 40,0 | 12,5 | 45 |
| 5300-8 1/2x1/2 | 1/2 | 1/2 | 55,0 | 16,0 | 72 |
| 5300-8 3/4x3/4 | 3/4 | 3/4 | 60 | 17,5 | 70 |
About the product
Stainless steel needle valve with parallel pipe thread.Body and spindle are delivered in stainless, acidproof steel AISI316.
Delivered with viton o-ring and PVDF gasket.
Hand wheel: Nylon 6.6
Lock nut: nickleplated brass
