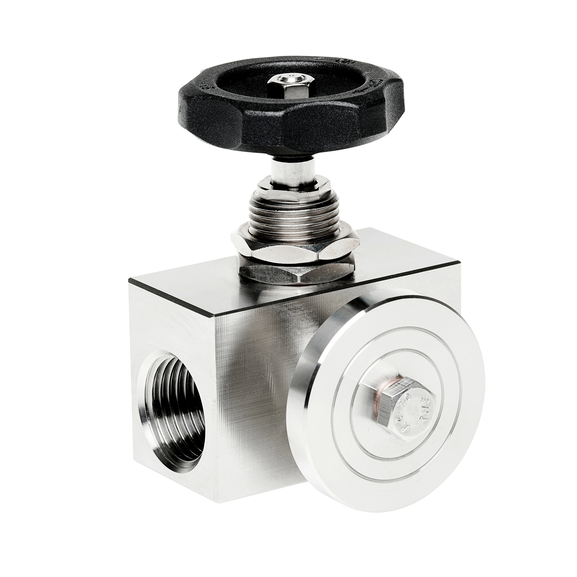

5300-23 Needle valve stainless steel with flange
Specifications

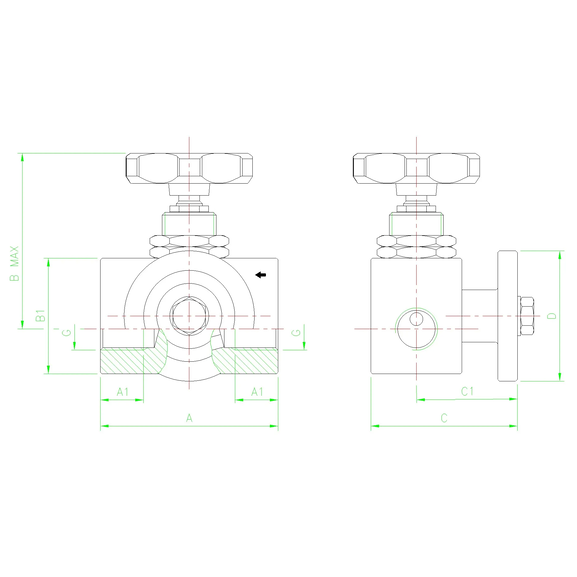

| Item number: | A | A1 | Thread Rp | B1 | B max | Dia. of flange | C1 | C |
|---|---|---|---|---|---|---|---|---|
| 5300-23 1/4x1/4 | 55 | 13,0 | 1/4 | 35 | 72 | 40,0 | 31 | 45 |
| 5300-23 1/2x1/2 | 55 | 13,0 | 1/2 | 35 | 72 | 40,0 | 31 | 45 |
About the product
Body, spindle and flange are made of stainless steel AISI316L.Supplied with FPM/FKM (Viton®) O-ring and PVDF gasket.
Handwheel: Nylon 6.6
Lock nut: Nickel plated brass
Dimensions: ¼” and ½” parallel pipe thread.
Working pressure: Maximum 250 bar
Working temperature. Maximum 200° C
