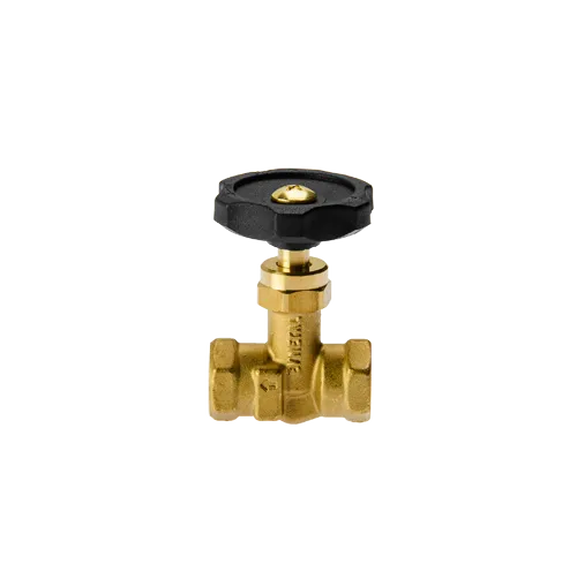

5200-8 Needle valve

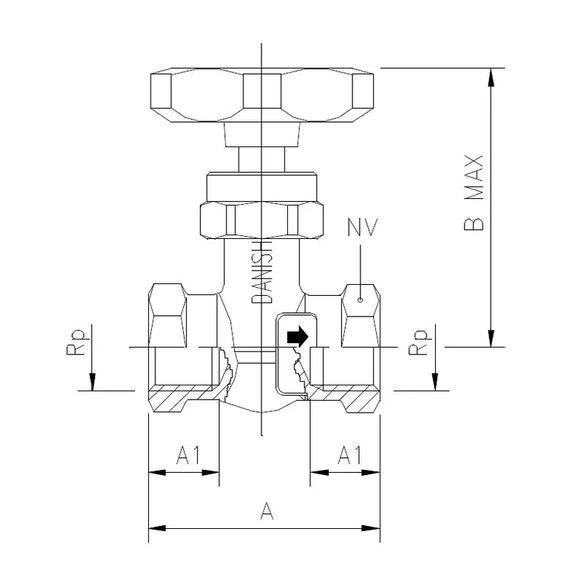

Specifications
| Item number: | A | A1 | HEX | Thread Rp | Thread Rp |
|---|---|---|---|---|---|
| 5200-8 1/8x1/8 | 35,0 | 8,0 | 17 | 1/8 | 1/8 |
| 5200-8 1/4x1/4 | 35,0 | 10,5 | 17 | 1/4 | 1/4 |
| 5200-8 3/8x3/8 | 39,0 | 11,0 | 21 | 3/8 | 3/8 |
| 5200-8 1/2x1/2 | 46,0 | 14,0 | 25 | 1/2 | 1/2 |
About the product
Needle valve with female parallel pipe thread.Delivered with teflon gasket.
