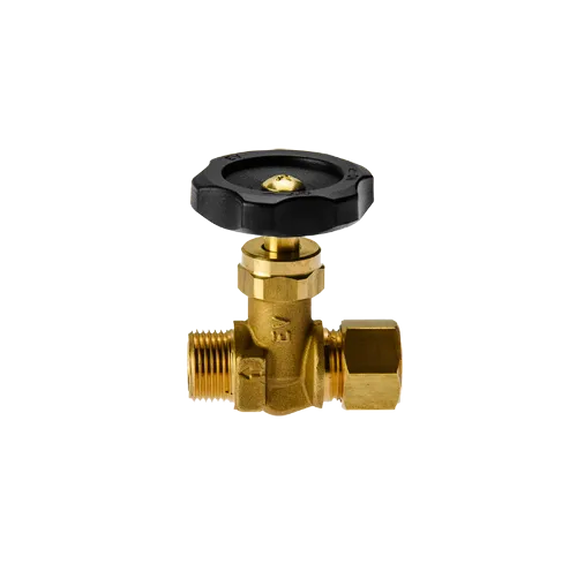

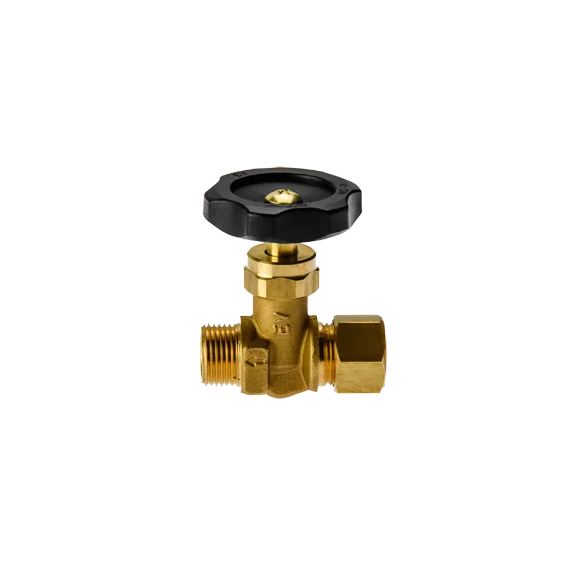

5200-68 Needle valve for compression
Specifications

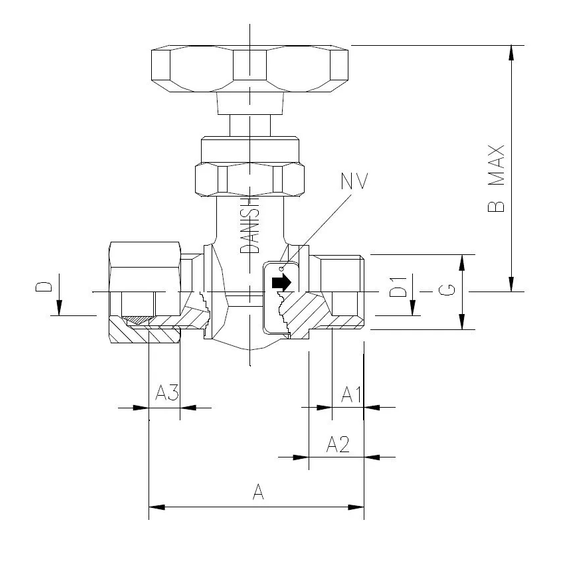

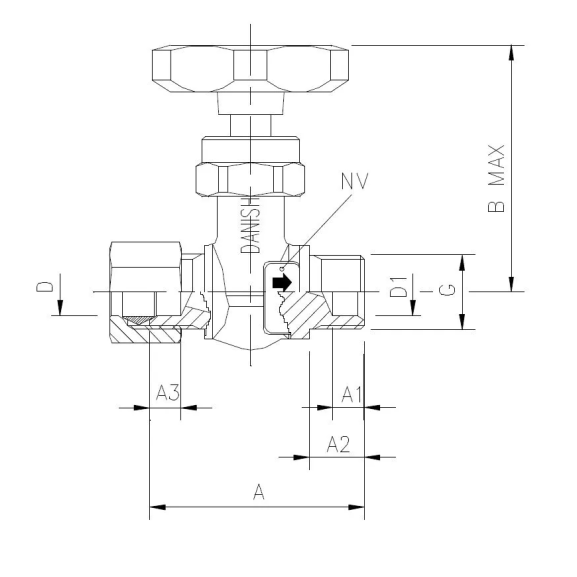

| Item number: | Thread G | Tube O.D. D | Tube O.D. D1 mm | A | A1 | A2 | A3 | HEX | B max |
|---|---|---|---|---|---|---|---|---|---|
| 5200-68 10x3/8 | 3/8 | 10 | 10 | 39,5 | 6,5 | 10,0 | 6,5 | 21 | 52 |
About the product
Needle valve for compression with parallel pipe thread.Delivered with teflon gasket, nut 61F and sleeve 60F.
