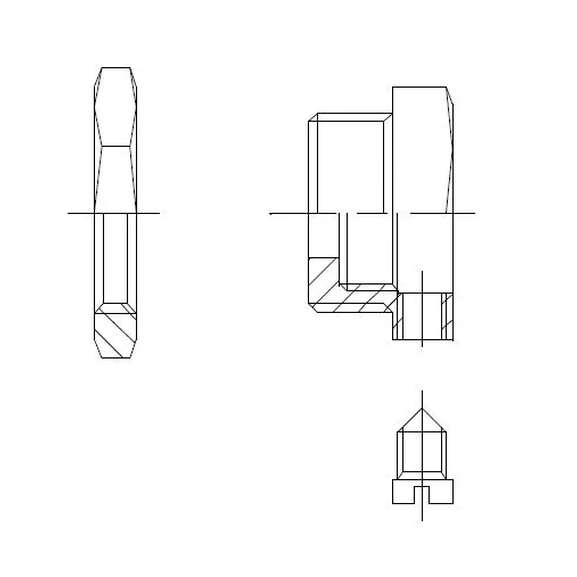

510X-40T   Extra charge for board mounting

About the product

Board mounting is used for mounting needle valves in boards, frames, boxes etc. when you want the handwheel to be placed on the outside, and the body with threads is hidden.

Can be delivered for all valve models 5100 and 5200.

For 1/8" og 1/4" valves the hole is drilled Ø17. Max thickness of the plate: 2,5 mm
For 3/8" og 1/2" valves the hole is drilled Ø21,5. Max thickness of the plate: 4,5 mm

5108-40T = for 1/8 and 1/4 valve
5109-40T = for 3/8 and  1/2 valve
