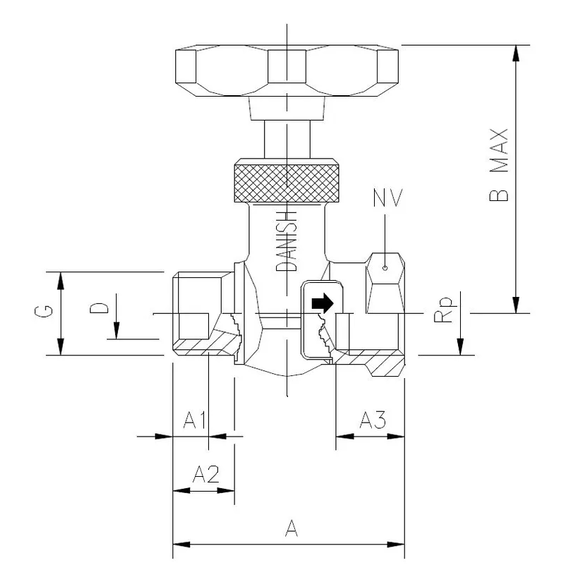

5100-88 Needle valve
Specifications
| Item number: | VVS code xxx | A | A1 | HEX | A2 | Thread Rp | Tube O.D. D mm | A3 | Thread G | B max |
|---|---|---|---|---|---|---|---|---|---|---|
| 5100-88 1/8x1/8 | 001 | 35,0 | 4,5 | 17 | 9,0 | 1/8 | 5 | 8,0 | 1/8 | 48 |
| 5100-88 1/4x1/4 | 002 | 35,5 | 5,5 | 17 | 9,5 | 1/4 | 8 | 10,5 | 1/4 | 48 |
| 5100-88 3/8x3/8 | 003 | 39,5 | 6,5 | 21 | 10,0 | 3/8 | 10 | 11,0 | 3/8 | 52 |
| 5100-88 1/2x1/2 | 004 | 46,0 | 12,0 | 25 | 13,0 | 1/2 | 15 | 14,0 | 1/2 | 53 |
About the product
Needle valve with female parallel pipe thread in one end and male parallel pipe thread in the other end.Delivered wit nitril o-ring.
