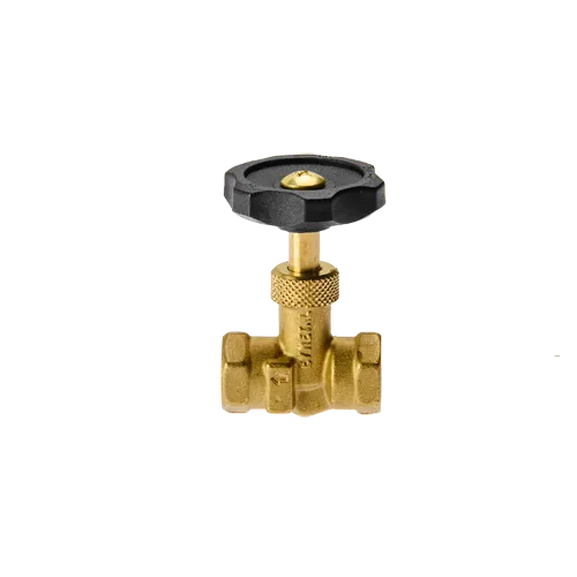

5100-8 Needle valve

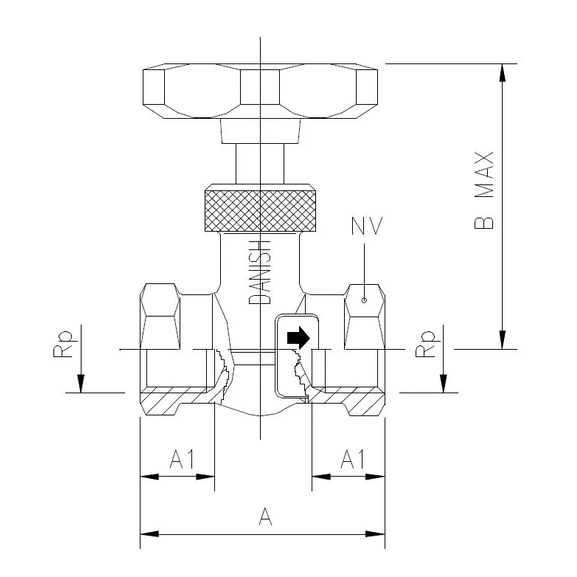

Specifications
| Item number: | Thread Rp | Thread Rp | VVS code xxx | A | A1 | HEX | B max |
|---|---|---|---|---|---|---|---|
| 5100-8 1/8x1/8 | 1/8 | 1/8 | 001 | 35,0 | 8,0 | 17 | 48 |
| 5100-8 1/4x1/4 | 1/4 | 1/4 | 002 | 35,0 | 10,5 | 17 | 48 |
| 5100-8 3/8x3/8 | 3/8 | 3/8 | 003 | 39,0 | 11,0 | 21 | 52 |
| 5100-8 1/2x1/2 | 1/2 | 1/2 | 004 | 46,0 | 14,0 | 25 | 53 |
About the product
Needle valve with female parallel pipe thread in both ends.Delivered with nitril o-ring.
