5100-68 Needle valve for compression
Specifications

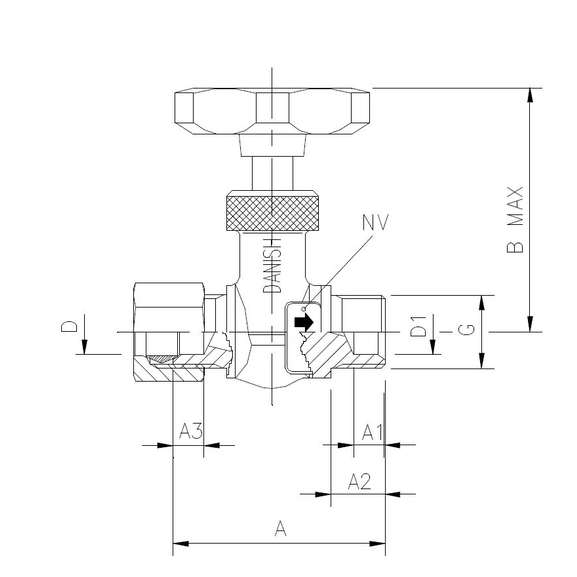

| Item number: | VVS code xxx | A | A1 | HEX | A2 | Tube O.D. D mm | Tube O.D. D1 mm | A3 | Thread G | B max |
|---|---|---|---|---|---|---|---|---|---|---|
| 5100-68 10x3/8 | 432 | 39,5 | 6,5 | 21 | 10,0 | 10 | 10,0 | 6,5 | 3/8 | 52 |
About the product

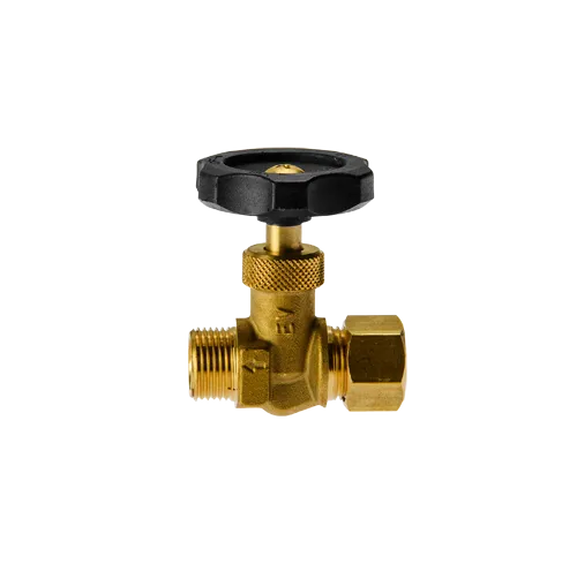

Needle valve for compression with parallel pipe thread.Delivered with nitril o-ring, nut 61F og sleeve 60F.
