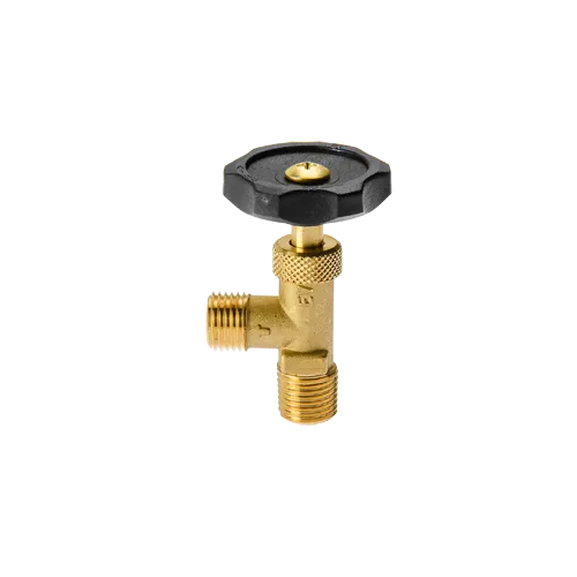

5100-285 Needle valve
Specifications

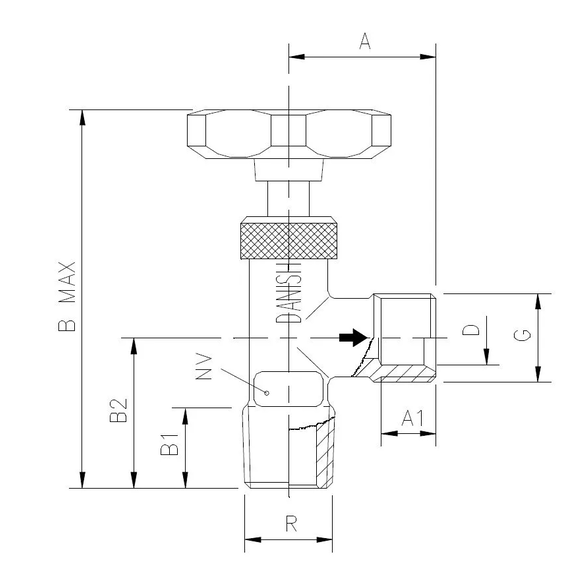

| Item number: | Thread G | Tube O.D. D mm | Thread R | VVS code xxx | A | A1 | B1 | B2 | HEX | B max |
|---|---|---|---|---|---|---|---|---|---|---|
| 5100-285 1/4x1/4 | 1/4 | 8 | 1/4 | 002 | 21,5 | 8,0 | 12,0 | 22,0 | 14 | 65 |
About the product
Needle valve with horizontal parallel pipe thread and vertical pipe thread.Delivered with nitril o-ring.
