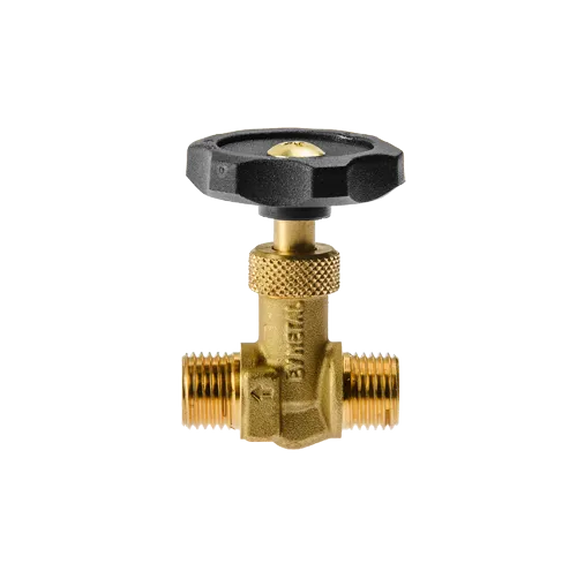

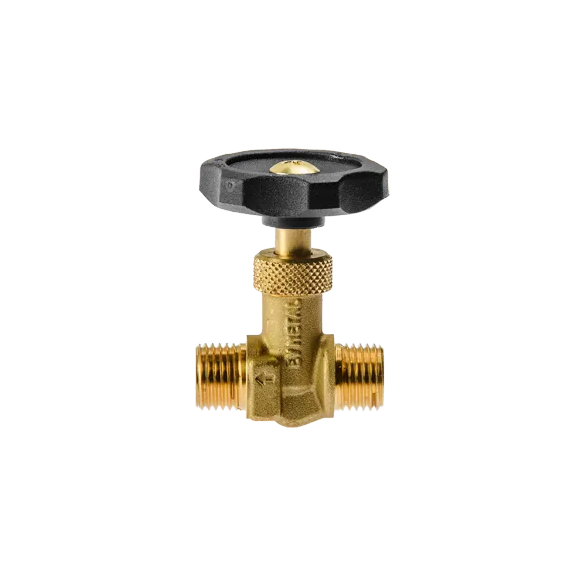

5100-282 Needle valve with parallel thread
Specifications

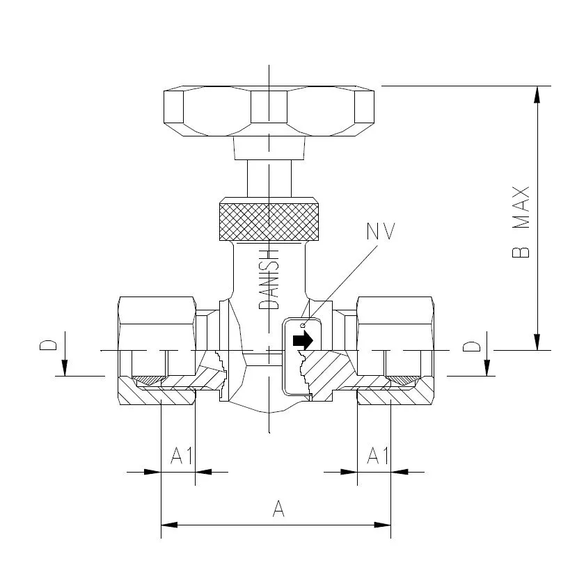

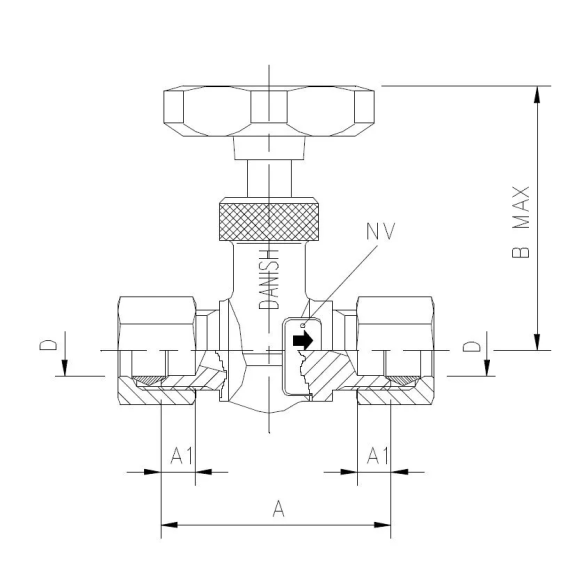

| Item number: | Thread G | Tube O.D. D mm | Thread G | A | A1 | A2 | HEX | B max |
|---|---|---|---|---|---|---|---|---|
| 5100-282 1/4x1/4 | 1/4 | 8 | 1/4 | 36,0 | 6,5 | 9,5 | 17 | 48 |
About the product
Needle valve with parallel thread.Delivered with nitril o-ring.
