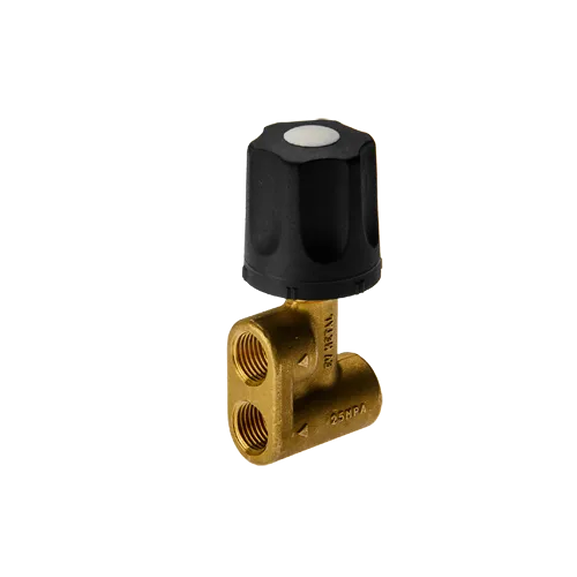

5106 Lance valve

5106 Lance valve

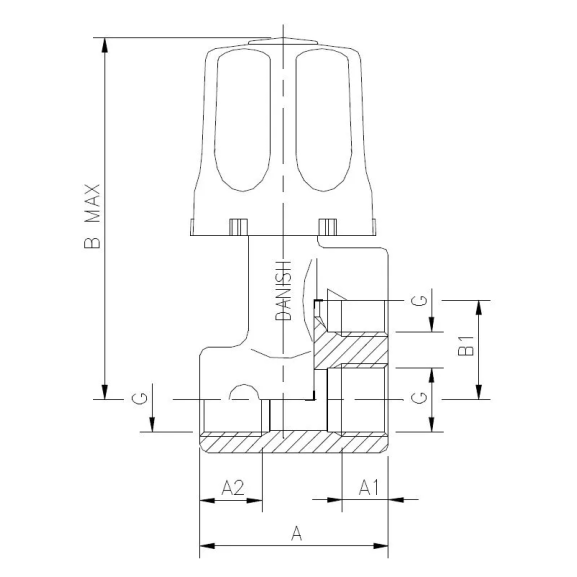

Specifications

Item number: Thread G Thread G A A1 A2 B1 B max
5106 1/4x1/4 1/4 1/4 34,0 8,5 11,0 18,0 72

About the product

Lance valve with parallel pipe thread.

Delivered with EPDM o-ring.

Max. working pressure: 250 bar
Usable in the temperature range -40°C to +125°C.
