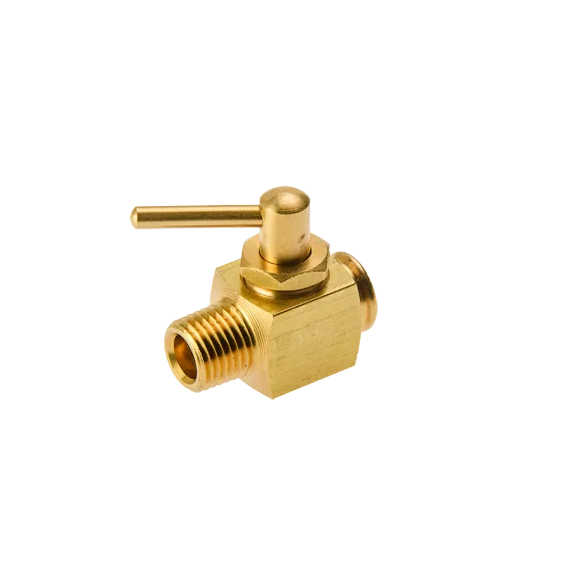

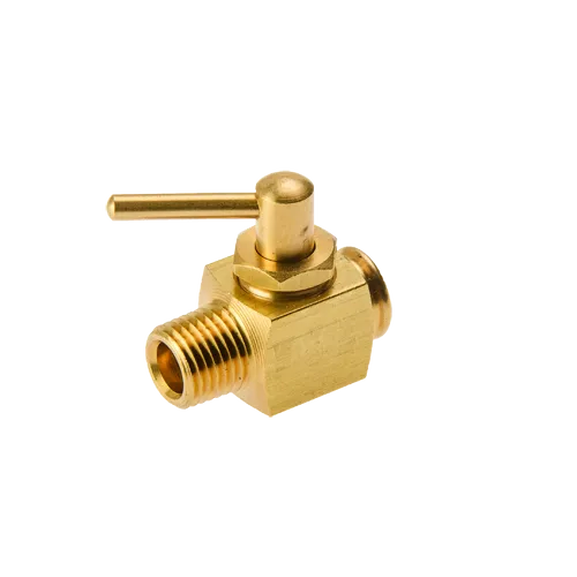

8115 On-Off Mini valve
Specifications

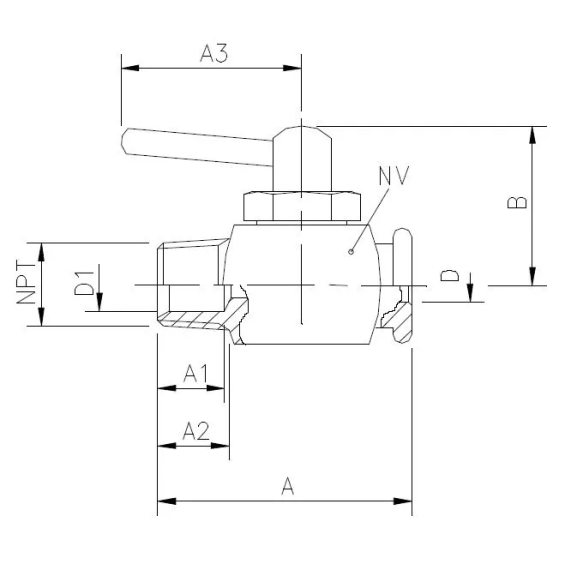

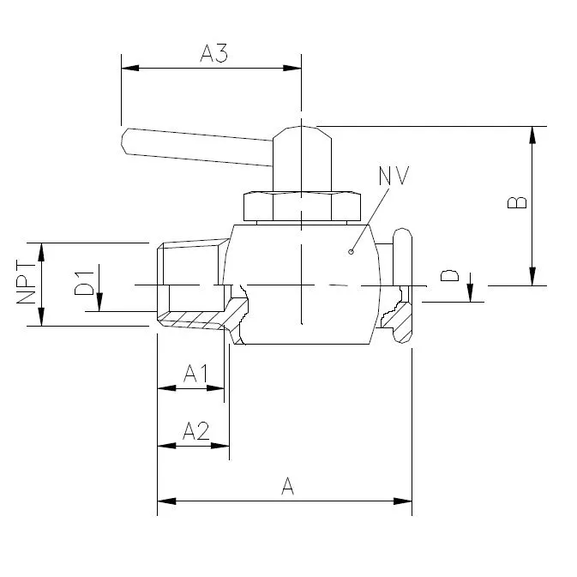

| Item number: | VVS code xxx | A | A1 | HEX | A2 | Thread NPT | B | Tube O.D. D1 mm | A3 | Dia D. |
|---|---|---|---|---|---|---|---|---|---|---|
| 8115 1/4 | 002 | 37,0 | 10,0 | 18 | 11,0 | 1/4 | 26,0 | 8 | 30,5 | 5 |
About the product
On-Off mini valve with NPT thread.
The On-Off Mini valve is tightened with a nitril (NBR) O-ring.
Max. working pressure: Depending on the media - Please ask.
Design temperature: ÷ 30° C up to +80° C.
