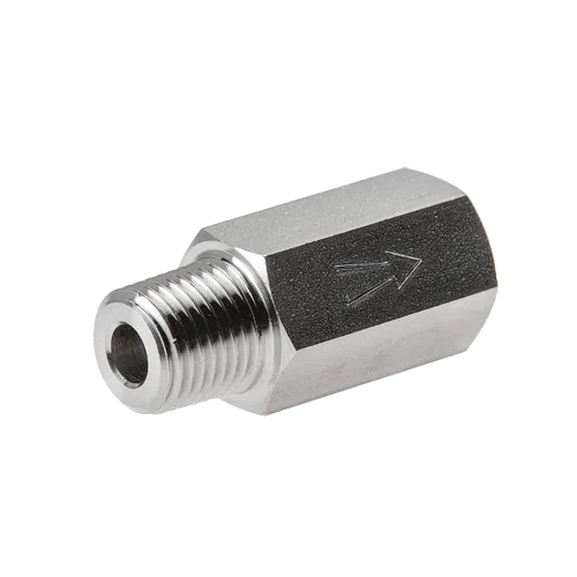

1020BRS Stainless Steel Check valve
Specifications

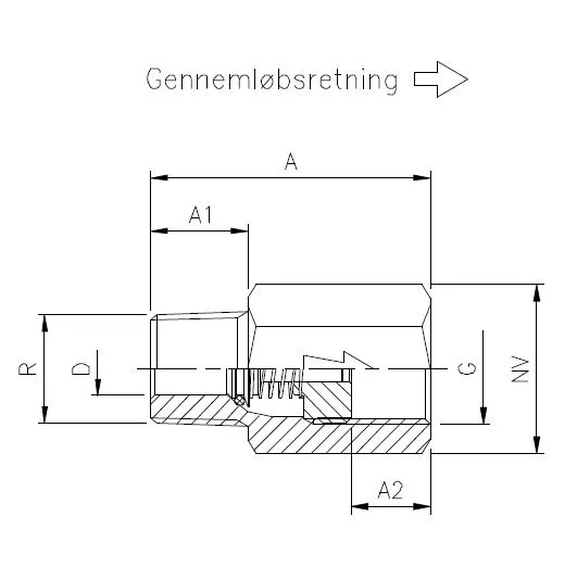

| Item number: | Thread G | Opening diff. pres. water column | Thread Rp | Max. working pres. | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|---|---|
| 1020BRS 1/4x1/4 | 1/4 | 450±100 | 1/4 | 30,0 | 40,0 | 12,5 | 8,5 | 17 |
| 1020BRS 3/8xx3/8 | 3/8 | 450±100 | 3/8 | 30,0 | 42,0 | 14,5 | 12 | 22 |
| 1020BRS 1/2x1/2 | 1/2 | 450±100 | 1/2 | 30,0 | 54,0 | 16,0 | 17,5 | 24 |
| 1020BRS 3/4x3/4 | 3/4 | 450±100 | 3/4 | 30,0 | 65,0 | 17,5 | 21,0 | 32 |
