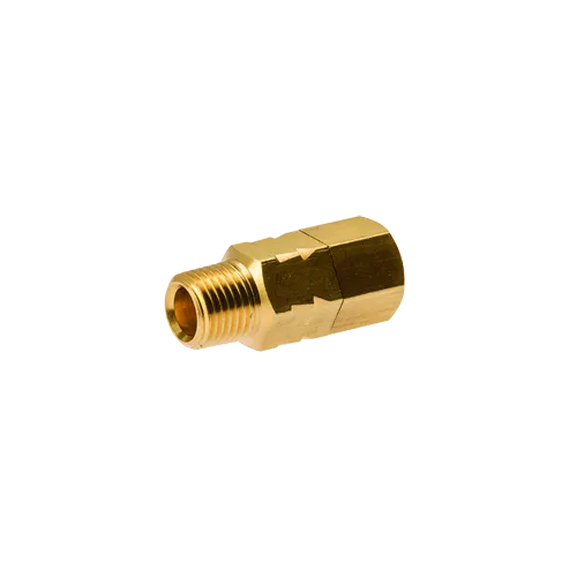

1020B Check valve
Specifications

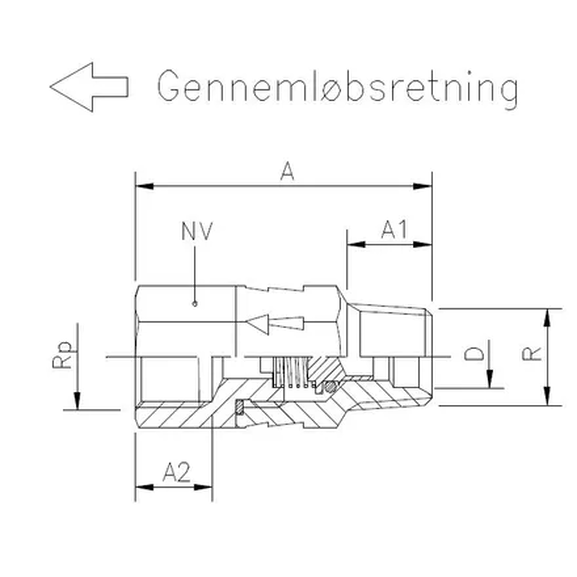

| Item number: | A | A1 | HEX | Thread R | A2 | Thread Rp | Tube O.D. D | Opening diff. pres. water column | Max. working pres. |
|---|---|---|---|---|---|---|---|---|---|
| 1020B 1/4x1/4 | 38,5 | 11,0 | 16 | 1/4 | 10,0 | 1/4 | 8 | 450±100 | 40,0 |
| 1020B 1/2x1/2 | 50,5 | 16 | 24 | 1/2 | 12 | 1/2 | 1/2 | 450±100 | 40,0 |
About the product
Check valve with female parallel pipe thread and male pipe thread.
