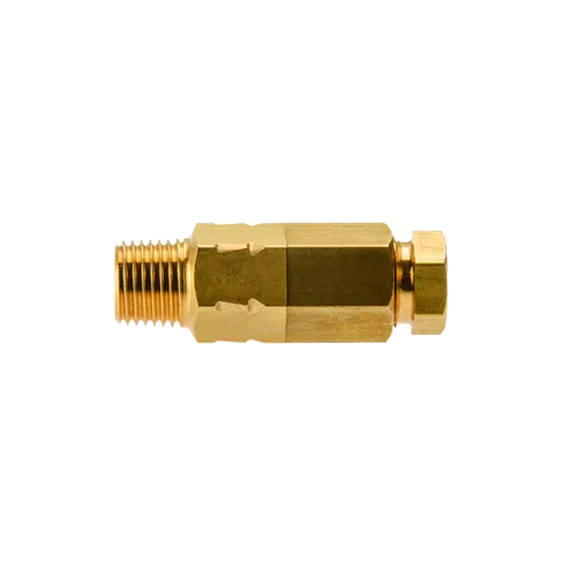

1020 Check valve
Specifications

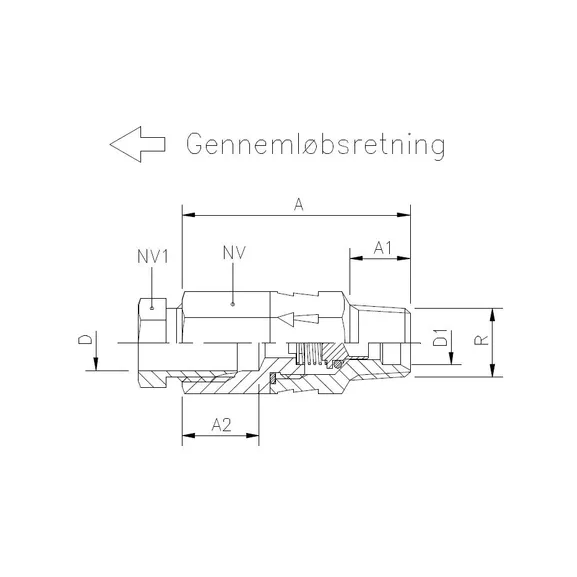

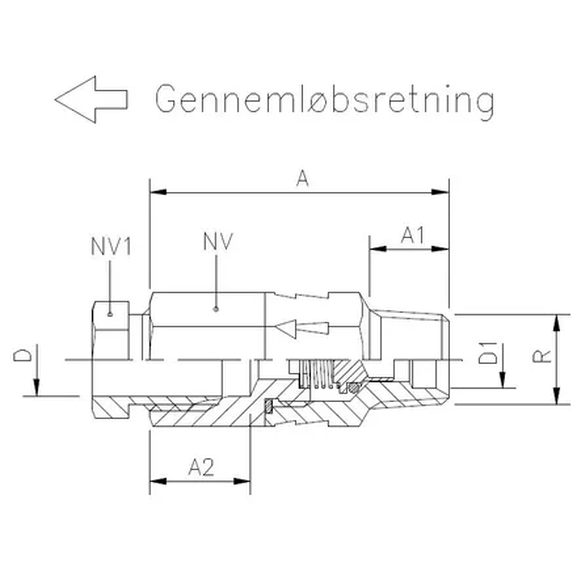

| Item number: | VVS code xxx | A | A1 | HEX | Thread R | A2 | Tube O.D. D1 mm | Tube O.D. D | HEX1 | Opening diff. pres. water column | Max. working pres. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1020 10x1/4 | 122 | 41,5 | 11,0 | 16 | 1/4 | 14,0 | 8 | 10 | 14 | 450±100 | 40,0 |
About the product
Check valve with pipe connection and with male pipe thread.Delivered with nut 181D 10.
