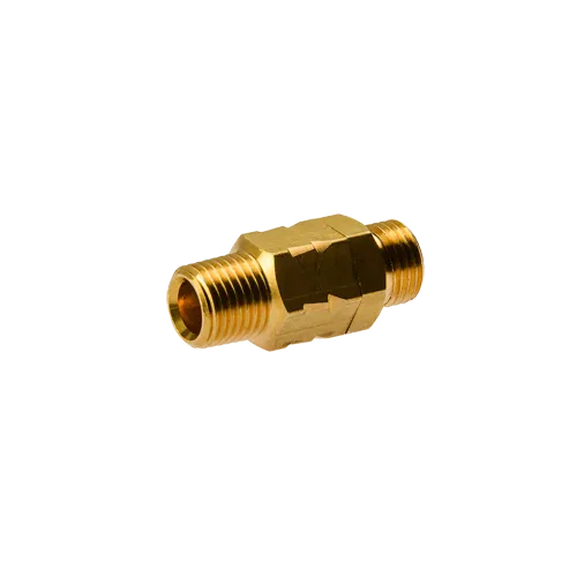

1020-283B Check valve
Specifications

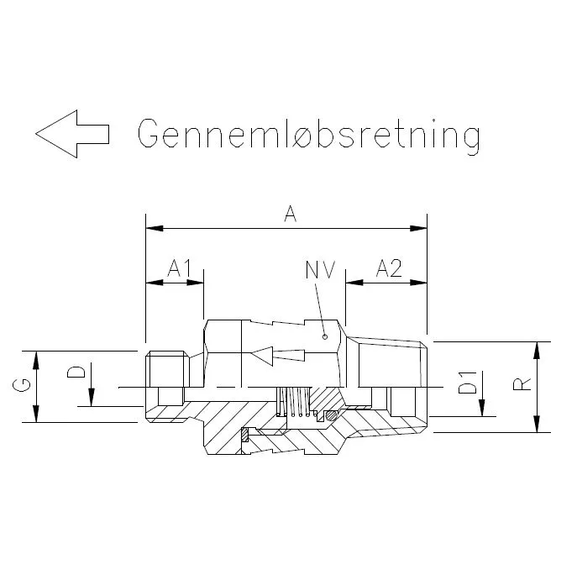

| Item number: | Thread G | Tube O.D. D | Tube O.D. D1 mm | Opening diff. pres. water column | Thread R | VVS code xxx | Max. working pres. | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1020-283B 1/8x1/4 | 1/8 | 5 | 8 | 450±100 | 1/4 | 001 | 40,0 | 38,5 | 8,0 | 11,0 | 16 |
| 1020-283B 1/4x1/4 | 1/4 | 8 | 8 | 450±100 | 1/4 | 002 | 40,0 | 39,0 | 8,5 | 11,0 | 16 |
