8919 Ball check valve
Specifications

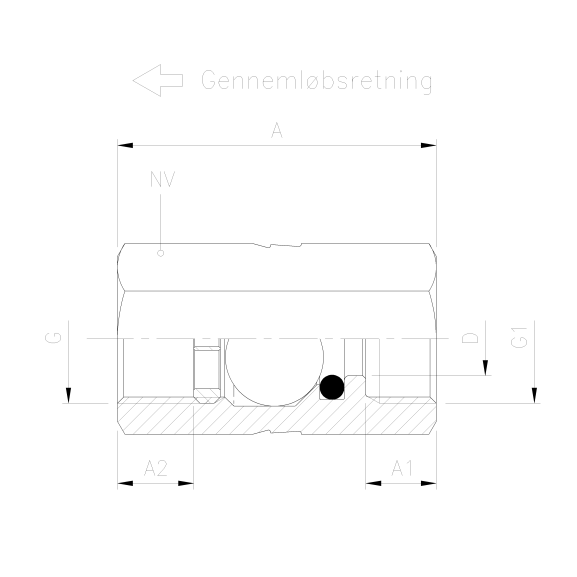

| Item number: | Thread Rp | Thread Rp1 | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|
| 8919T-10 1/2x1/2 | 1/2 | 1/2 | 52,0 | 11,5 | 17,5 | 27 |
| 8919P-10 1/2x1/2 | 1/2 | 1/2 | 52,0 | 11,5 | 17,5 | 27 |
| 8919P-10 1x1 | 1 | 1 | 73,0 | 14,0 | 20,0 | 41 |
| 8919T-10 1x1 | 1 | 1 | 73,0 | 14,0 | 20,0 | 41 |
About the product

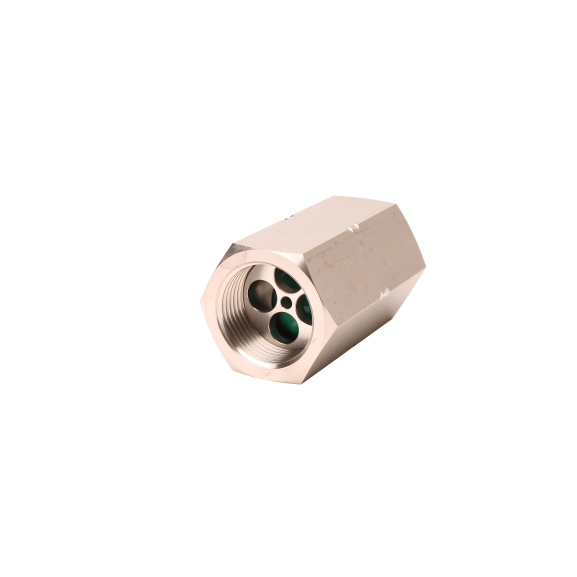

Ball check valve
Material, body: AISI316L
Valve ball: PP (Item#: 8919P), or PTFE (Item#: 8919T)
O-ring: NBR (other materials on request)
On request the ball check valves can be manufactured in the following materials:
· Titanium (Item#: 8919x-60)
· Hastelloy (Item#: 8919x-50)
· Super duplex (Item#: 8919x-30)
Valve can be supplied with FDA approval on request
Valve can be supplied for flanges on request.
Only valid in vertical rising flow direction.
