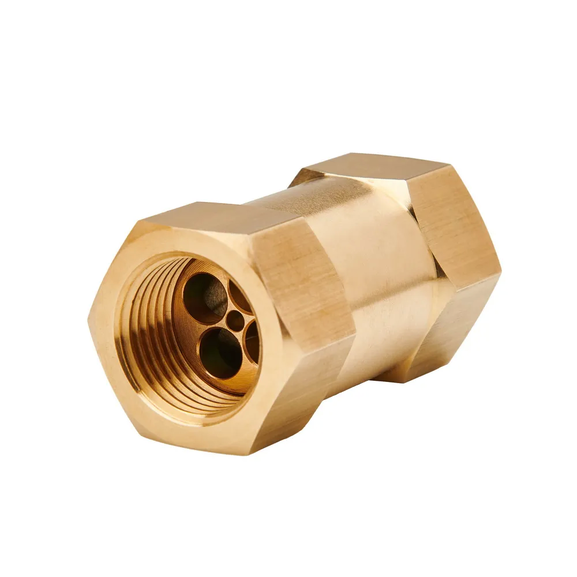

8919 Ball check valve
Specifications

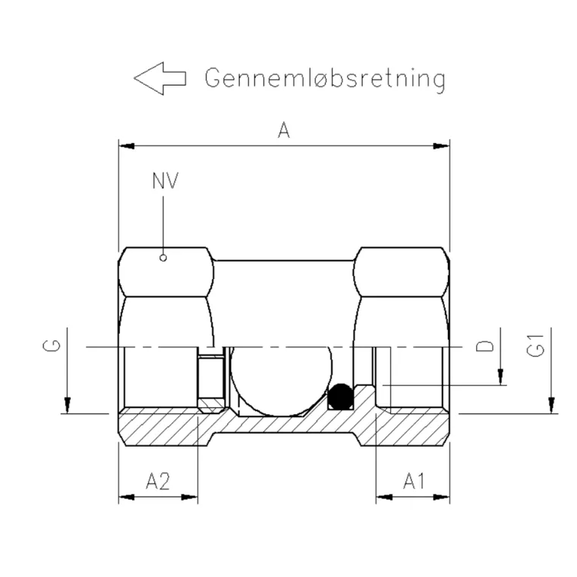

| Item number: | A | A1 | HEX | A2 | Thread Rp | Thread Rp1 |
|---|---|---|---|---|---|---|
| 8919P 1/2x1/2 | 52,0 | 11,5 | 27 | 10,5 | 1/2 | 1/2 |
| 8919P 3/4x3/4 | 64,0 | 13.0 | 34 | 12,0 | 3/4 | 3/4 |
| 8919P 1x1 | 73,0 | 14,0 | 41 | 14,0 | 1 | 1 |
| 8919P 11/2x11/2 | 100 | 21,5 | 60 | 20,5 | 11/2 | 11/2 |
About the product
Ball check valve with pipe thread.
Material, body: Brass, CW614N
Valve ball: PP (Item#: 8919P), or PTFE (Item#: 8919T)
O-ring: NBR (other materials on request)
On request the ball check valves can be manufactured in the following materials:
· Titanium (Item#: 8919x-60)
· Hastelloy (Item#: 8919x-50)
· Super duplex (Item#: 8919x-30)
Valve can be supplied with FDA approval on request
Valve can be supplied for flanges on request.
Only valid in vertical rising flow direction.
